Multi-brandHYD-SEAL-KIT

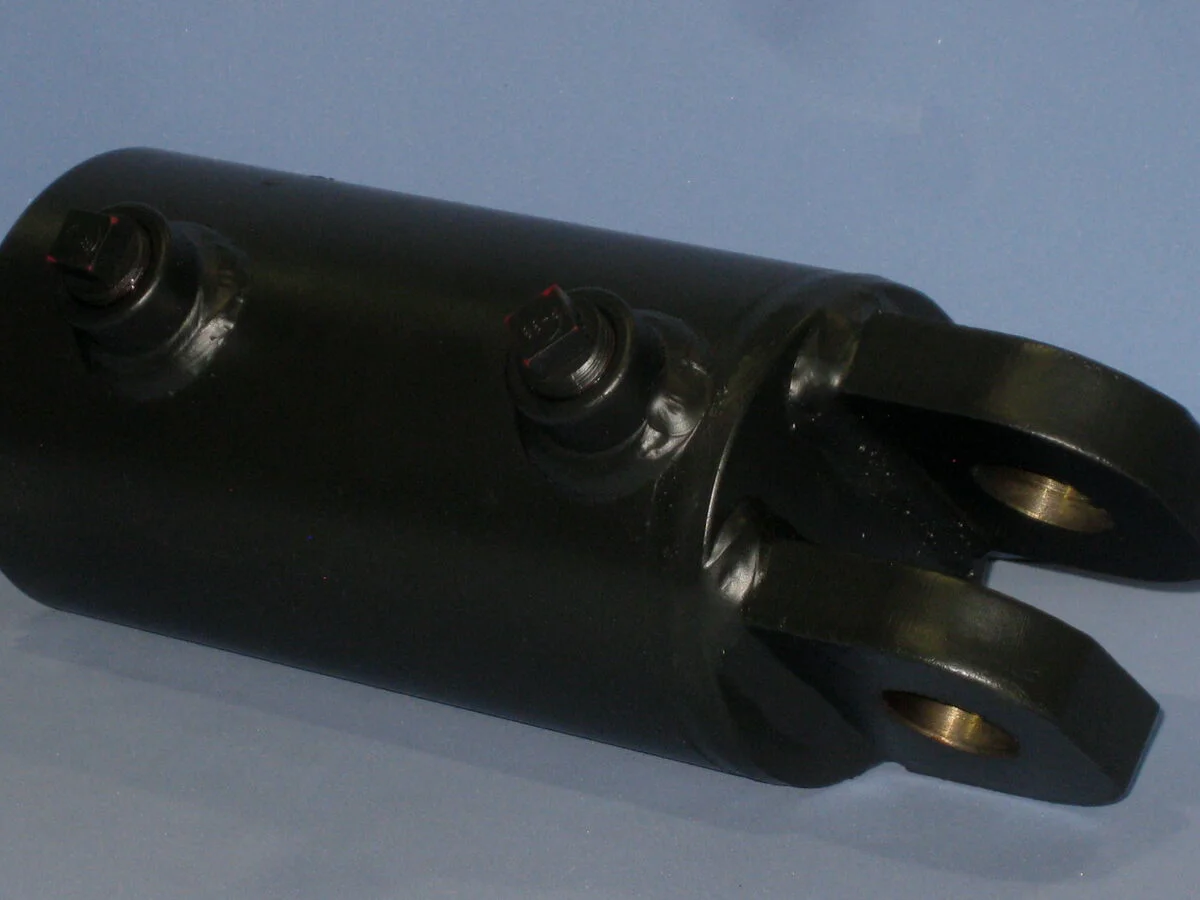

Hydraulic Cylinder Seal Kits

Rod, piston and wiper seal kits for boom, arm and bucket cylinders — 350 bar rated.

Price on request

Specifications

Application: Boom, arm, bucket, blade, outrigger and steering cylinders

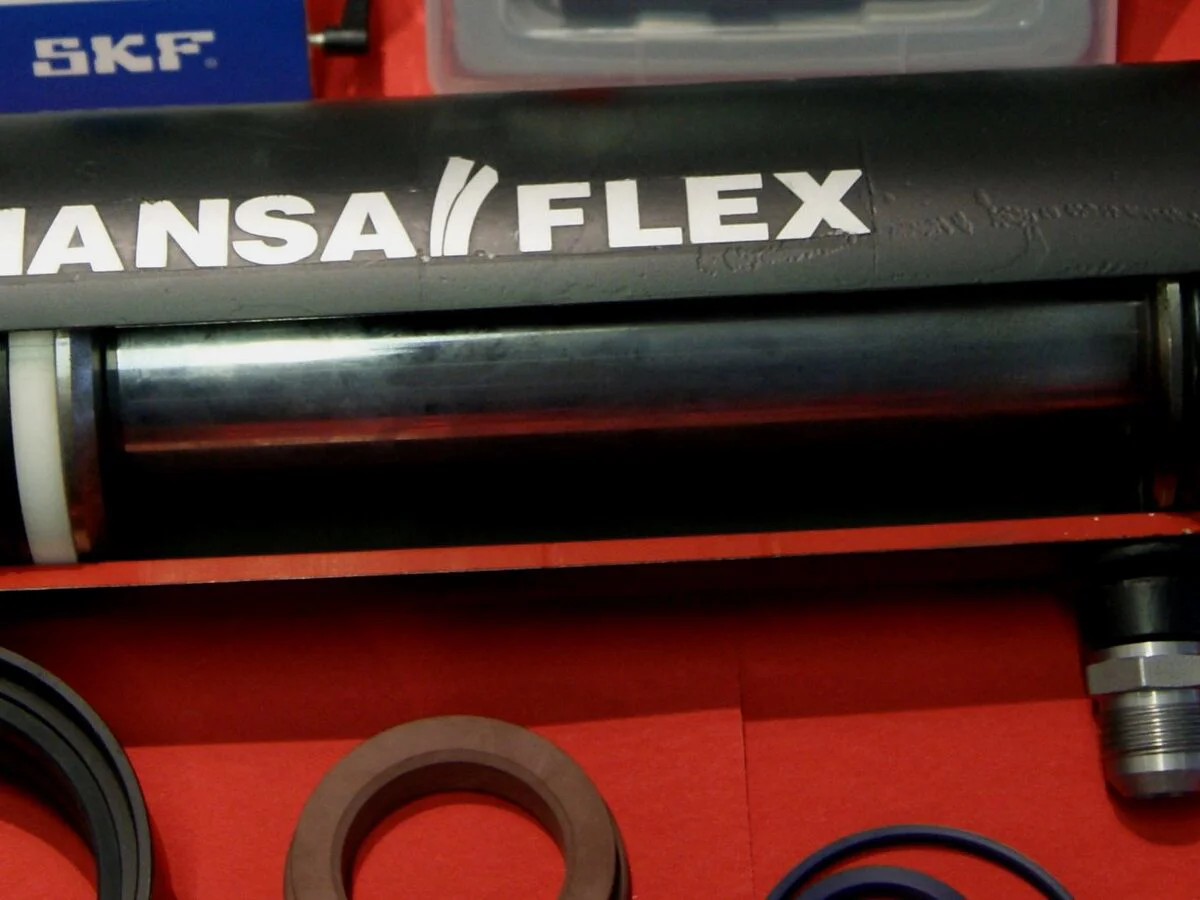

Kit contents: Rod seal, piston seal, buffer ring, wear rings, wiper, O-rings, back-up rings
Working pressure: up to 350 bar (peak 420 bar)
Temperature range: -30 °C to +110 °C
Fluid compatibility: Mineral hydraulic oil (HLP), biodegradable HEES on request
Seal materials: NBR, HNBR, polyurethane, PTFE-bronze, POM guide rings
Rod diameter coverage: 40 – 180 mm
Bore diameter coverage: 60 – 250 mm
Supply grades: OEM and OEM-equivalent
Brand coverage: Caterpillar, Komatsu, Hitachi, Volvo, Doosan, JCB, Kobelco
Ordering data required: Machine model, cylinder position, rod and bore diameter, or the old seal set
Notes: A weeping cylinder is almost always a seal rather than a barrel or rod fault

Description

A weeping cylinder is the most common reason a machine is taken out of service, and it is almost always a seal rather than a barrel or rod problem. We hold and source complete kits — rod seal, piston seal, wear ring, wiper, O-rings and back-up rings — in NBR, polyurethane and PTFE-bronze depending on operating temperature and pressure, rated to 350 bar and covering the main excavator and loader brands. Quote by machine model and cylinder bore/rod diameter, or send the old seal set and we will identify the profile.
