Caterpillar140

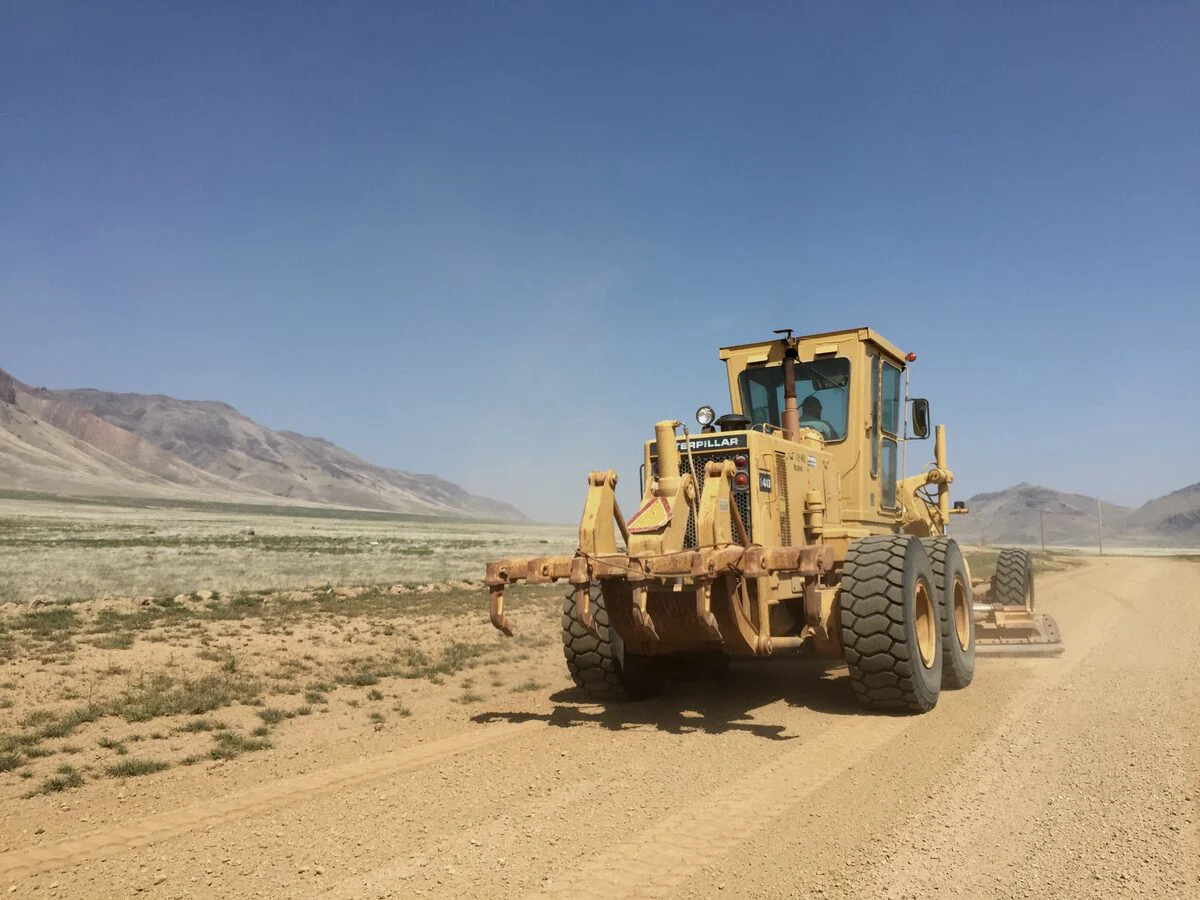

Caterpillar 140 Motor Grader

3.7 m mouldboard grader for haul-road maintenance, subgrade finishing and drainage work.

Price on request

Specifications

Machine type: Motor grader
Operating weight: 18 500 kg
Engine: Cat C7.1, 6-cylinder turbo-diesel
Net power (VHP range): 138 – 179 kW (185 – 240 hp)
Drive: 6×4 standard, all-wheel drive optional
Transmission: 8F / 6R direct-drive powershift
Mouldboard width × height: 3 660 × 610 mm
Blade pull: 10 900 kg
Blade lift above ground: 480 mm
Circle diameter: 1 530 mm
Turning radius: 7 500 mm
Tyres: 14.00R24
Fuel tank: 435 l
Options: Front ripper, rear scarifier, snow wing, ROPS cab

Description

Haul-road condition drives truck cycle times and tyre life more than almost anything else on a mine or quarry site, and the 140 is the machine most often put against it. The 3.7 m mouldboard, variable-horsepower engine and fine hydraulic metering make it equally suitable for finishing subgrade to specification. All-wheel drive is available for soft or steep working, and a front ripper or rear scarifier can be fitted for breaking compacted surfaces before regrading. Quoted new or used, with blade, scarifier and cab specification confirmed before order.
